Basic Electronic Circuits Calc
8.3
1.1
2025-07-07
Latest Version
With this Application you can calculate basic transistor operations.
With this Application you can calculate basic transistor operations.
As an electronic caluclation application, It offers,
Common Base Transistor Circuit,
Common Collector Transistor Circuit,
Common Drain Transistor Circuit,
Common Gate Transistor Circuit,
Common Source Transistor Circuit,
Calculations of Output/Input Voltage Gain (Av)
and Voltage between output pins.
MOSFET and BJT Transistors included.
Expand

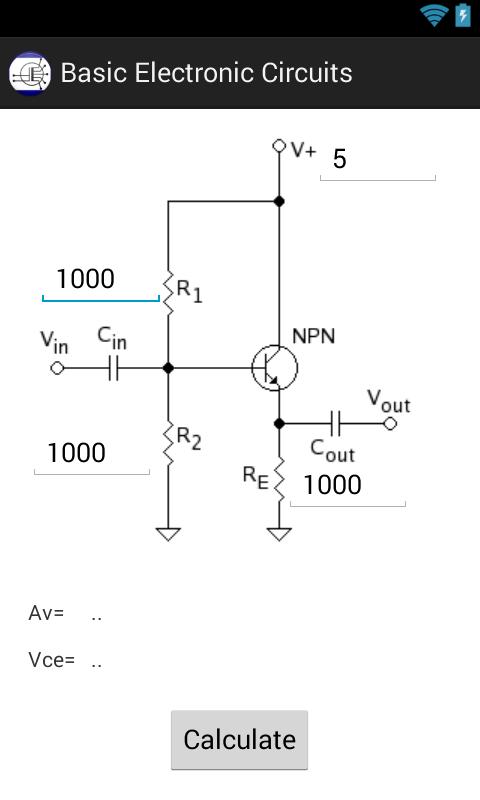

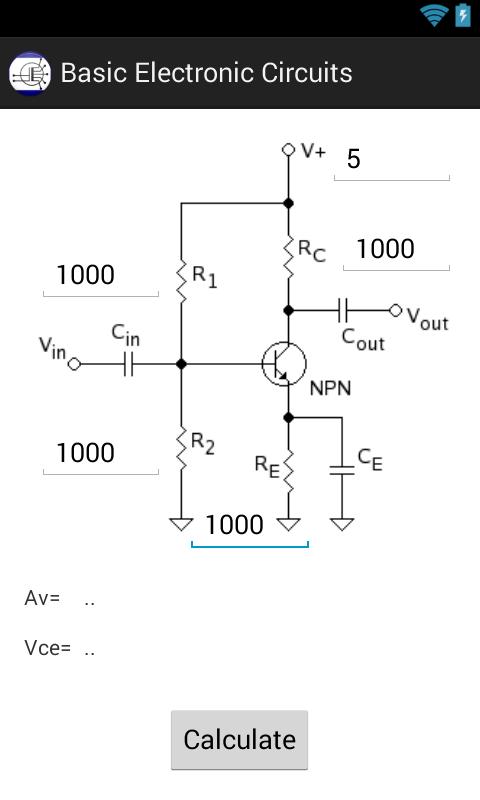

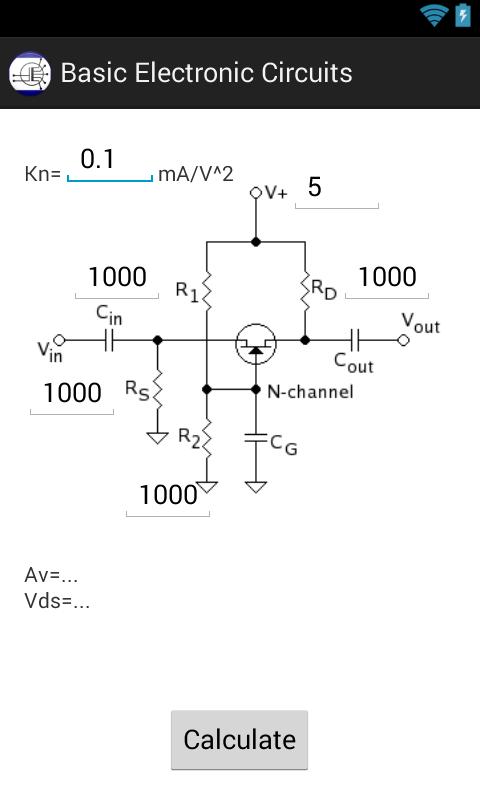

Basic Electronic Circuits Calc Screenshots
