Want help with your laboratory experiments? Bored of monotonous theoretical calculations? Are you an electronics student?

If you answered yes to all the questions, you have come to the right place. Electronics made easy !!

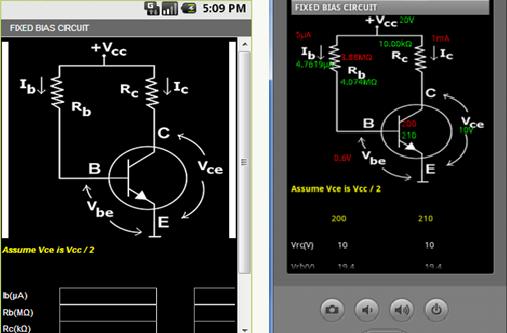

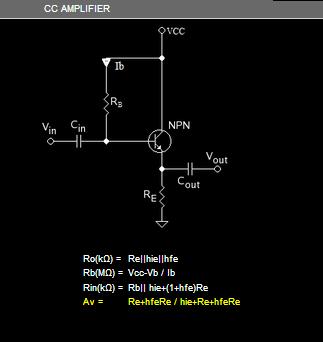

The user is presented with the circuit diagram and design formulas initially. After entering the input values appropriately, the design calculations are done by the app and the output values are displayed. Labelled circuits, equivalent circuits, circuit simulations, plotted graphs are displayed as applicable.

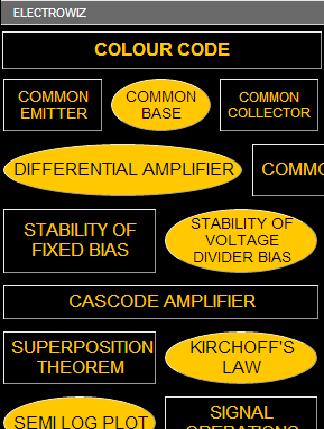

This app assists you in designing simulation and graphical analysis of the following concepts

I. Basic operations

 Resistance value calculation, Semi-log graph plotting, Discrete and analog signal manipulations including shifting, scaling, inverting, etc.

II. Electronic circuits - Design calculations are presented lucidly for:

 BJT and FET transistor configurations viz, CE, CC, CB, CS.

 Fixed and voltage divider bias circuits.

 Multivibrator and oscillator circuits viz. astable, mono-stable, RC phase shift etc.

 Amplifiers viz. cascode, differential,single tuned etc.

III. Linear Integrated circuits viz. SMPS,VCO, FM transceiver are designed and output generated.

IV. Circuit simulations and analysis is done for kirchoff’s law and superposition theorem.
