Keysight Oscilloscope Mobile

View/control your Keysight/Agilent scope and capture instrument screenshots

(Remarque: vous pouvez également être intéressé par une application de KeySight Mobile gratuite nommée Benchvue Mobile qui prend en charge les oscilloscopes, les analyseurs de spectre, les générateurs de fonctions, le DMMS et les alimentations.)

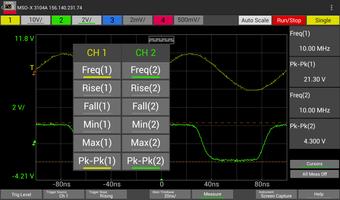

Keysight Oscilloscope Mobile enables you to view live waveforms, make measurements, capture instrument screenshots and control your Keysight/Agilent oscilloscope from your iPad or iPhone.

Caractéristiques clés

- Supports up to 4 analog channels

- Simulation mode available - experiment with the app before connecting it to your oscilloscope

- Save screen captures from your instrument onto your mobile device

- View and control oscilloscopes that are connected by LAN, USB, GPIB or RS232

- Collaboration - Have a colleague connect to the same scope on their tablet or phone and see what you see.

Control the following functions on your Keysight/Agilent oscilloscope (see below for supported models/firmware)

- Start/stop/single acquisition

- Autoscale

- Change time/div

- Change volts/div

- Turn channels on/off

- Select trigger type/level/source

- Measure: frequency, rise/fall time, min/max, peak-peak

Connecting to an Oscilloscope

If your oscilloscope is on the network, you can connect to it directly from your mobile device as follows:

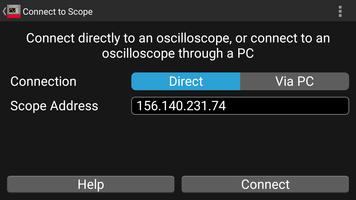

1. On your mobile device, start Oscilloscope Mobile and tap Connect to Scope

2. For the Choose Connection setting, tap Direct

3. Enter the IP Address or hostname of your oscilloscope and tap Connect

Si votre oscilloscope est connecté à votre PC via LAN, GPIB, USB ou RS232, vous pouvez vous y connecter via un agent mobile oscilloscope fonctionnant sur votre PC comme suit:

1. On your Windows PC ( WinXP, Win7, Win8, Win10), install Keysight Oscilloscope Mobile Agent (available free from http://www.keysight.com/find/scopemobile)

2. Start the Keysight Oscilloscope Mobile Agent on your PC and connect to your oscilloscope.

3. Start this app and tap Connect to Scope.

4. Enter the IP Address or hostname of your PC and tap Connect.

Viewing a Simulated Oscilloscope

To view and control a simulated oscilloscope:

1. Start this app and tap Simulate Scope.

System Requirements

Android 4.0.3 and up

Supported Oscilloscope Models

The following Keysight/Agilent 0scilloscope series and firmware revision levels are supported:

InfiniiVision 2000 X-Series, minimum firmware revision 01.10

InfiniiVision 3000A X-Series, minimum firmware revision 01.10

InfiniiVision 3000T X-Series, minimum firmware revision 04.00 (1)

InfiniiVision 4000 X-Series, minimum firmware revision 01.10

InfiniiVision 5000 Series, minimum firmware revision 05.20 (1)

InfiniiVision 6000 Series, minimum firmware revision 05.20

InfiniiVision 6000 X-Series, minimum firmware revision 06.00 (2)

InfiniiVision 7000 Series, minimum firmware revision 05.20

Infiniium 9000 Series, minimum firmware revision 03.10

Infiniium S-Series, minimum firmware revision 05.00 (2)

Notes:

1. When connecting through a PC, requires Oscilloscope Mobile Agent 1.5 or above

2. When connecting through a PC, requires Oscilloscope Mobile Agent 1.4 or above

Soutien et commentaires

Please email [email protected] to report bugs, ask questions or give us your feedback.

Quoi de neuf dans la dernière version 2.3
